Two Wire Loop Powered Pressure Transmitters

Features
  • 2 wire loop powered
  • Powered by 8-32 VDC 4-20 mA current loop
  • Output test button
  • ±0.25% test gauge accuracy
  • Optional ±0.1% accuracy for some models and ranges
  • 316 stainless steel sensor
  • 1 year warranty
Click on PDF links below
for product information

Links
Pressure conversion calculator
Options & accessories
Regulatory compliance

Similar Products
Gauges with alarms and analog output
4 wire transmitters

Click Here for Applications
Vacuum pumps
Chemical tank level
Kiln vacuum
Water line pressure
Potable water system pressure
Autoclave vacuum
How to select your product
  • Open pdf datasheet for your model
  • Select model, range, units, options, accessories
  • Contact us if you need assistance
Need a quote?
Ready to order?
Other ways to order
Model Specifications/Ranges Features Product

Loop Powered Transmitters 2 Wire, 4-20 mA
Loop Loss Display Backup


Selectable Units
Programmable Output Range


F16LSC   $459
F16LSCN    $479

Open Datasheet
Download Datasheet

Range Table
Download Range Table

F16LSC Brochure

Open Brochure
Download Brochure


F16LSC: Standard housing
F16LSCN: NEMA 4X housing
  • ±0.25% FS accuracy
  • Optional ±0.1% FS high accuracy in most ranges
  • 4 digit display
  • Vacuum to 5000 psi ranges
  • Absolute reference available
  • Super capacitor operates display without loop power
  • Display pressure readings even if loop power is lost
  • 4-20 mA passive transmitter
  • Absolute reference available
  • Engineering units available: psi, inHg, oz/in2, inH2O, ftH2O, mmH2O, cmH2O, mmHg, Torr, g/cm2, mbar, bar, kPa, MPa, atm, kg/cm2

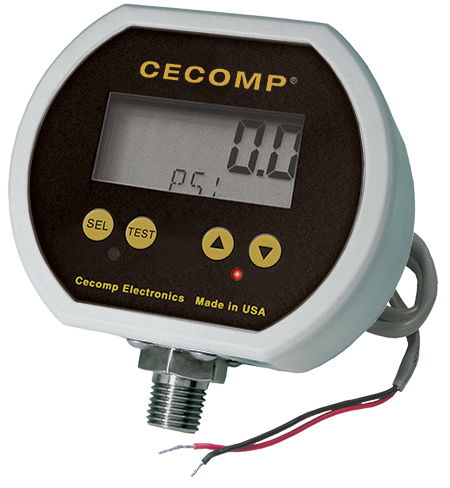

loop powered digital pressure transmitter: F16LSC F16LSC NEMA 4X loop powered digital pressure transmitter: F16LSCN F16LSCN

Loop Powered Transmitters 2 Wire, 4-20 mA


Factory Configured

DPG1000L   $409
F4L   $429

Open Datasheet
Download Datasheet

Range Table
Download Range Table
DPG1000L: Standard housing
F4L: NEMA 4X housing
  • ±0.25% FS accuracy
  • 4-20 mA 2-wire transmitter
  • Vacuum to 1999 psi ranges
  • Absolute reference available
  • All common engineering units available: psi, inHg, oz/in2, inH2O, ftH2O, mmH2O, cmH2O, mmHg, Torr, g/cm2, mbar, bar, kPa, MPa, atm, kg/cm2
  • 2 wire 4-20 mA loop-powered
  • True analog output
  • 3-1/2 digit display
  • Front zero and span potentiometers
  • Adjustable output test

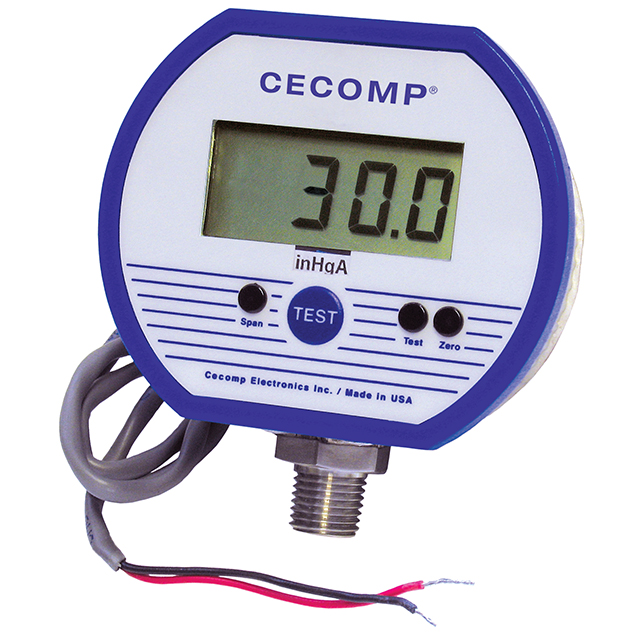

DPG1000LDPG1000L

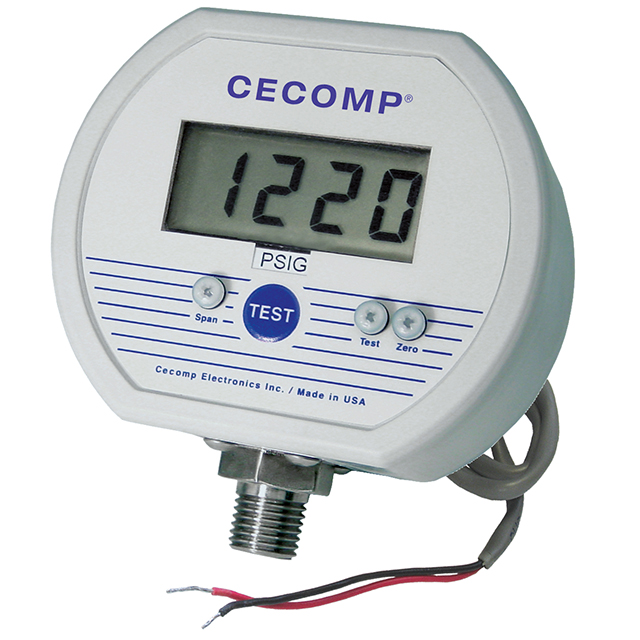

F4LF4L

Loop Powered Transmitter 2 Wire, 4-20 mA


Factory Configured

F16L   $439
F16LN   $459

Open Datasheet
Download Datasheet

Range Table
Download Range Table

F16L:  Standard housing F16LN: NEMA 4X housing
  • ±0.25% FS accuracy
  • Optional ±0.1% FS high accuracy in most ranges
  • 4-20 mA passive transmitter
  • Vacuum to 5000 psi ranges
  • Absolute reference available
  • Engineering units available: psi, inHg, oz/in2, inH2O, ftH2O, mmH2O, cmH2O, mmHg, Torr, g/cm2, mbar, bar, kPa, MPa, atm, kg/cm2
  • 2 wire 4-20mA loop-powered
  • 4 digit display
  • Keypad calibration with pass code
loop powered digital pressure transmitter: F16LF16L
NEMA 4X loop powered digital pressure transmitter: F16LNF16LN
NIST Traceable Certification

NIST Certificate


NC   $125


Open Cecomp Accessories
Download Cecomp Accessories
NIST Traceable Calibration Data
  • 5 calibration points
  • Test data
  • Gauge model & serial number
  • Date of test
  • NC includes information on the NIST traceable calibration standard used
Note: To prevent a lost certificate,
please instruct your receiving department to
keep the certificate envelope with the gauge.

Gauges can be returned to factory for recertification.
NIST traceable calibration certificate
Click on images to enlarge
High Accuracy Option

High Accuracy


-HA   $90

Open Cecomp Accessories
Download Cecomp Accessories
High accuracy option
±0.10% full scale ±1 least significant digit

Standard with CTP1B and CTP3B

May not be available with all models and all ranges
See model datasheet or price list for availability
Standard accuracy
±0.25% full scale ±1 least significant digit

±0.10%


-HA
Circuit Board Conformal Coating Option

Conformal Coating


-CC   $20

Open Cecomp Accessories
Download Cecomp Accessories
Conformal coating on circuit boards

For high humidity applications

Must be factory installed
For any Cecomp model
Standard on DPG2000B series, CTPB series, and with -FP option
conformal coating on circuit board
-CC
Cecomp Filter Screen SCR14SS

Filter Screen


SCR14SS   $59

Open Cecomp Accessories
Download Cecomp Accessories
Filter screen fitting keeps debris out of gauge sensor
Highly recommended for food vacuum packaging applications
303 SS body, 100 micron 304 SS screen
Fits any gauge with a 1/4 NPT fitting
Pressure range: vacuum to 4000 psi
1/4 NPT female x 1/4 NPT male
filter acreen fitting for digital pressure gauge
SCR14SS
Panel Mounting Option

Panel Mount


-PM   $50

Open Cecomp Accessories
Download Cecomp Accessories
Panel mounting flange, 4.1" x 4.1"

Fits standard quarter DIN opening (92 mm x 92 mm) or
a 3.5" to 4" diameter circular opening

Dimensional drawing

NOT for NEMA housing

Must be factory installed
digital pressure gauge  panel mount option
-PM
